Product details
|
The remote control module is used in vehicles with central locking systems. The remote control module is a method used when a new remote control cannot be programmed into the vehicle or a remote control to be programmed cannot be supplied. It works with 12V. It is used in vehicles such as passenger cars, light commercial vehicles, panel vans, pickup trucks and minibuses. It is compatible with every vehicle regardless of brand and model. The module also has trunk and window open/close functions. If the vehicle to be installed has a window and trunk lock motor, it supports the window opening-closing and trunk opening functions of the vehicle.
Package Contents;
– 2 x Remote Control
– 1 x Remote Control Module
– 1 x Connection Cable
– 1 x Connection Diagram
Operation Instructions:
- Lock
Press Button once, the lights will flash once, the door lock will be locked automatically, LED blinks. Meanwhile, the window closes up automatically for 20seconds.
- Unlock
Press button once, the lights will flash 2 times, the door lock will be unlocked automatically
- Trunk release
Long press for 2.5 seconds, the direction light will flash 3 times and trunk release simultaneously

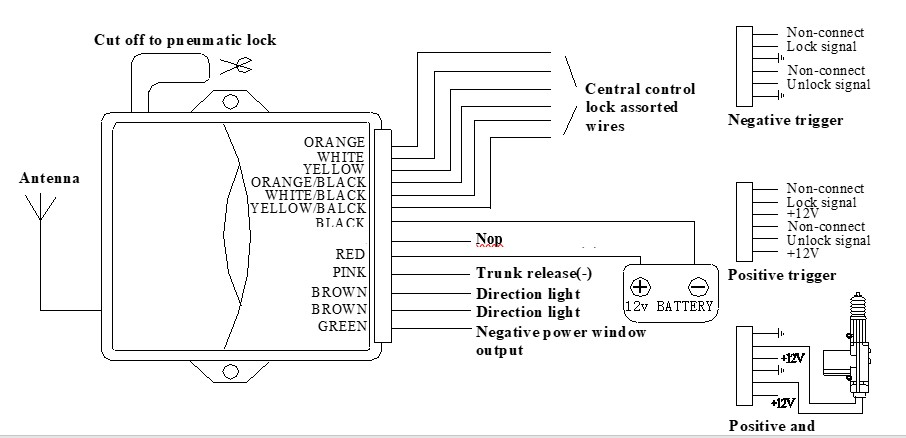

Circuit Diagram of Remote Central Control Lock System
