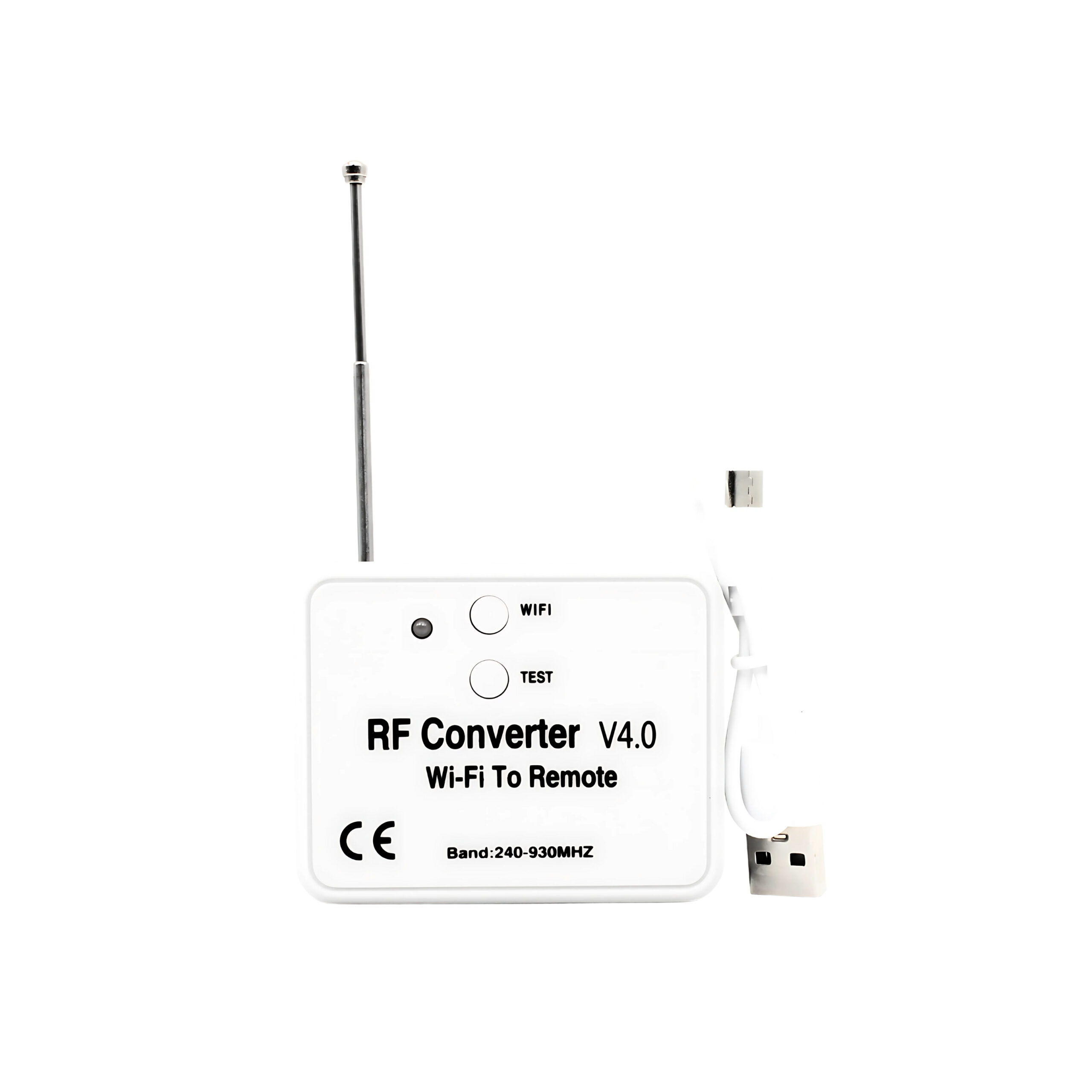

Universal WiFi + Bluetooth Module Receiver Unit

Universal Wireless WiFi RF Converter — Remote Control via Phone for Smart Home (240–930 MHz)

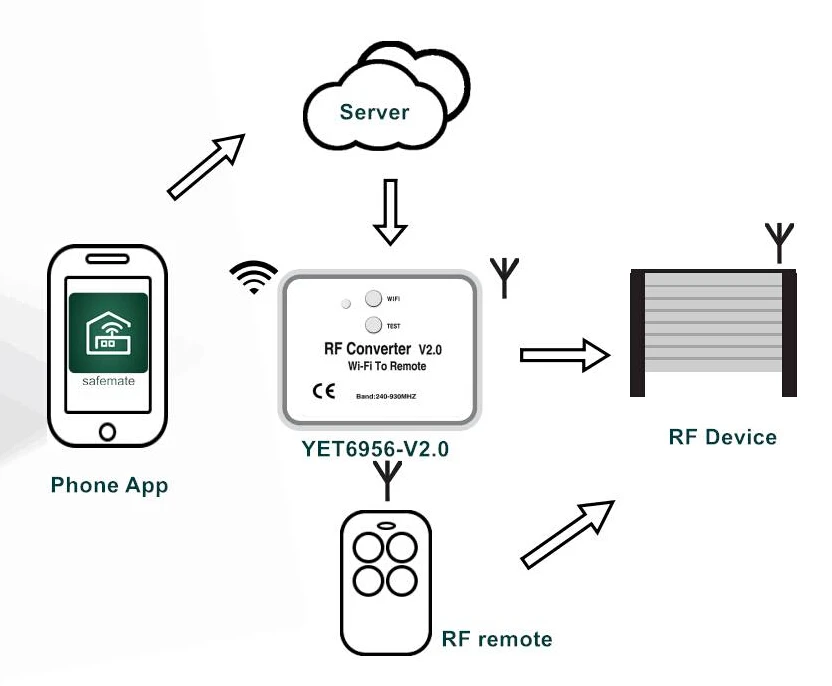

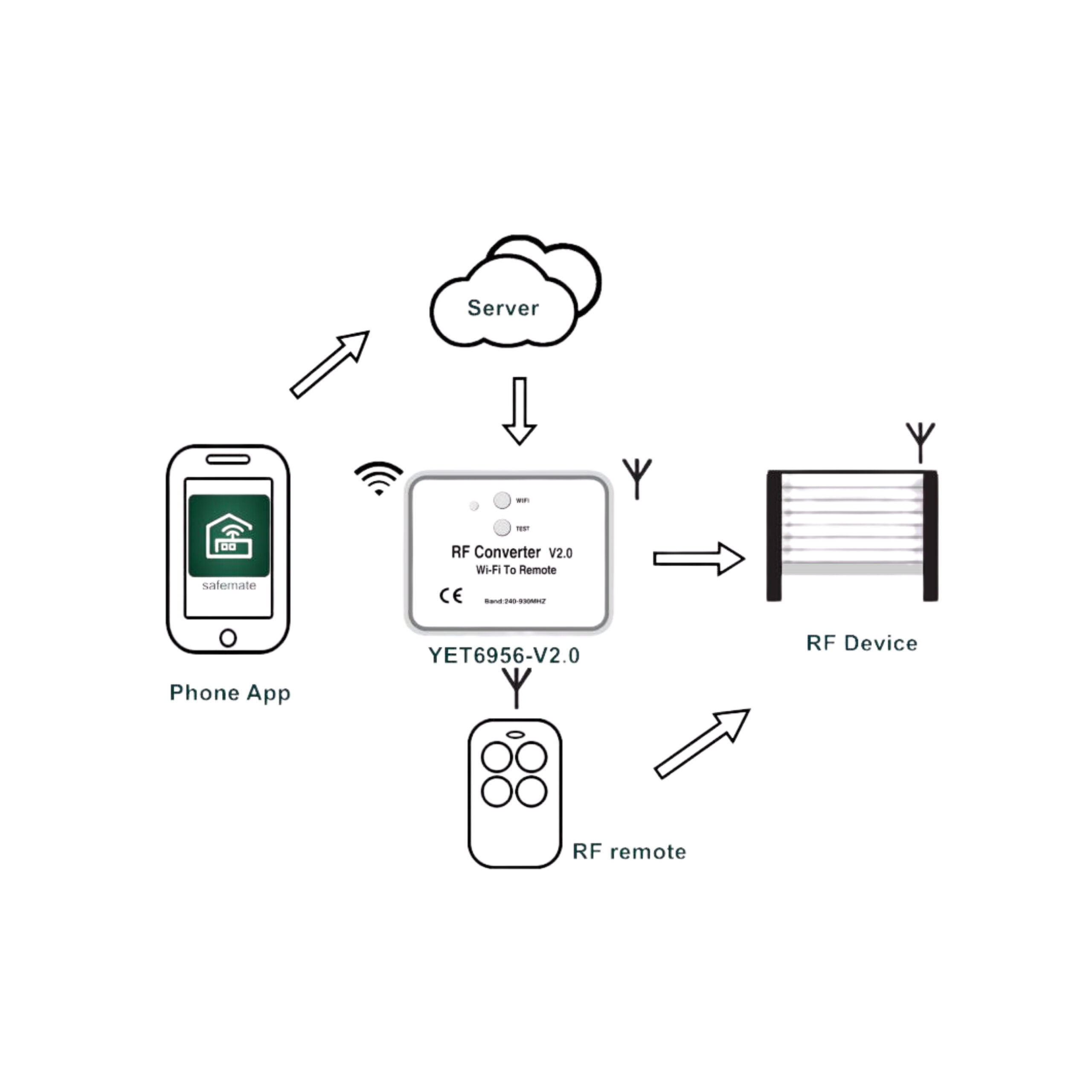

With this device installed, you can control your RF-enabled automatic devices from anywhere, even if you are in another country.
Simply connect your phone to the same WiFi during pairing, then use 4G or any other internet connection for remote control.

Input Voltage:
DC 5V

Operating Frequency:

• WiFi: 2.4 ~ 2.5 GHz
• RF Remote: 240 ~ 930 MHz

Receiver Sensitivity:

• -115 dBm, 868 MHz
• -116 dBm, 915 MHz

WiFi Receiver Sensitivity:

• 802.11 B: -91 dBm (11 Mbps)
• 802.11 G: -75 dBm (54 Mbps)
• 802.11 N: -72 dBm (MCS7)

WiFi Transmission Power:

• 802.11 B: +20 dBm
• 802.11 G: +17 dBm
• 802.11 N: +16 dBm

Dimensions:
67.5 × 54 × 19.5 mm

Supported Devices:
Android 5.0 / iOS 10.1 and above

Features:

1. Supports universal remotes such as HS1527, PT2262, SMC5326, and HT6P20D, as well as some branded remotes. For specific supported brands, refer to our instructions.
2. Long-distance control capability.
3. Simple remote management: One converter can pair with multiple controllers from different brands, and allows deletion or renaming of different brand remotes in the app.
4. Remote control: Mobile terminals can control devices remotely, making the user experience more convenient.
