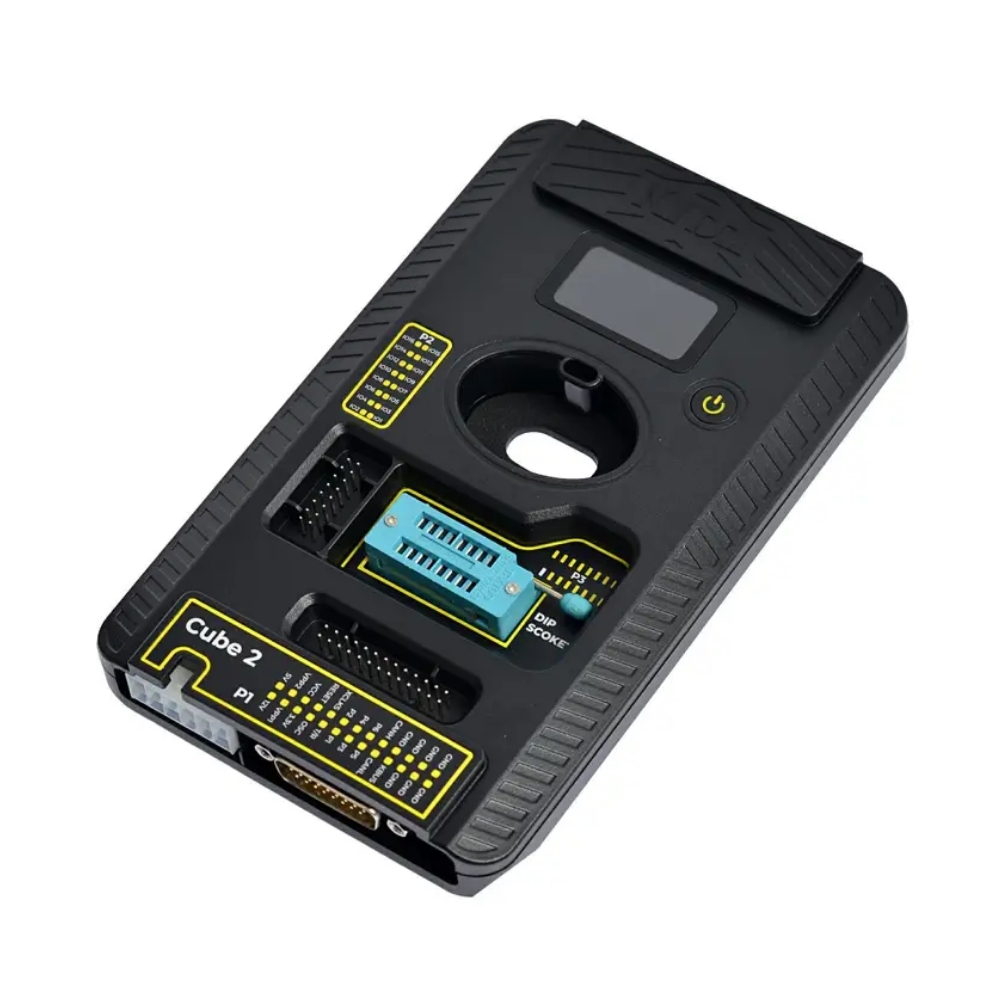

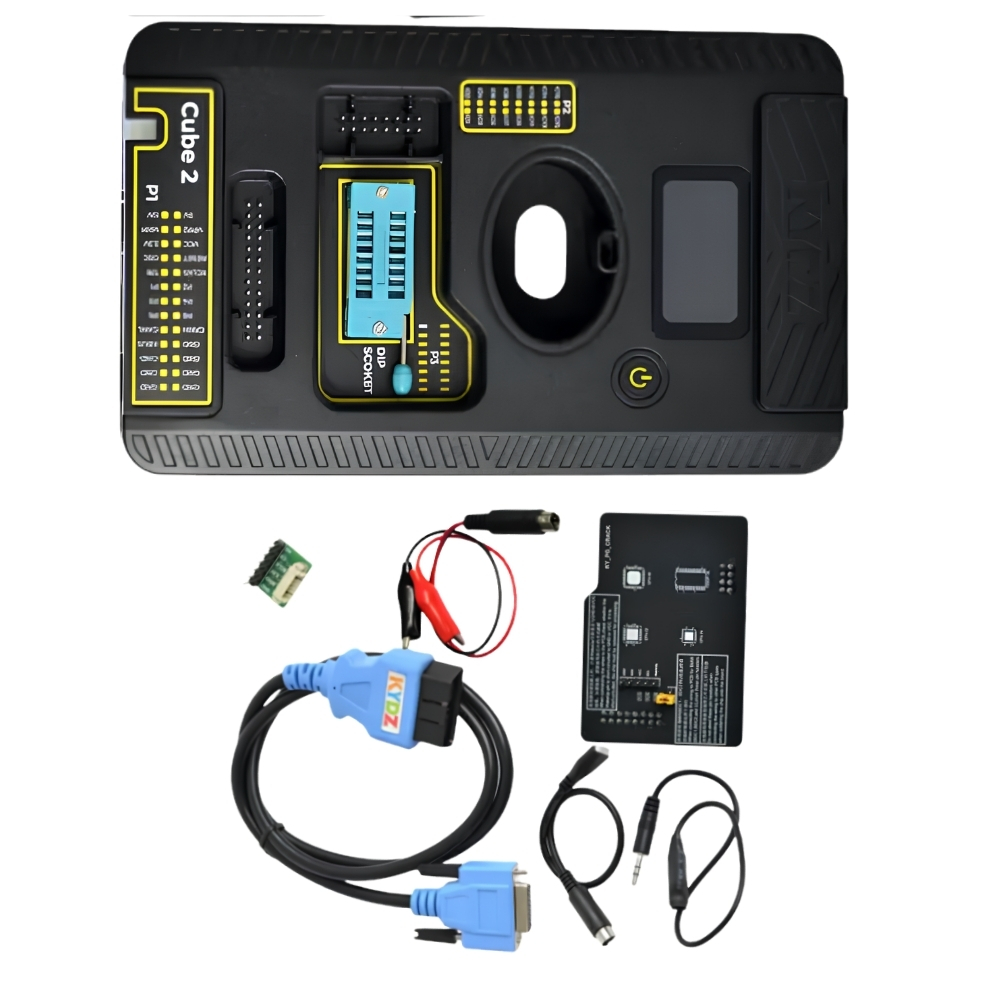

KYDZ Cube 2 – Multifunctional Device for Remote Control Production and Immobilizer Service

KYDZ Cube 2 is an advanced diagnostic and service device designed for professionals specializing in vehicle key duplication, remote control programming, and immobilizer system servicing. It combines key and remote control production, transponder cloning, radio signal analysis, and vehicle communication line diagnostics in a single device.

FUNCTION OVERVIEW

Smart Key Card and Remote Control Production

• Production of smart key cards for compatible systems

• Remote control production for various vehicle models

• Support for a wide range of modern keyless systems

Transponder Cloning

The device allows you to read, calculate, and clone data from various transponders, including:

• ID46

• ID4D

• ID4C

• ID48

Additional Functions

• Toyota 8A transponder key calculation for unlocked memory pages

• Smart NXP card cloning

Smart NXP Card Cloning

KYDZ Cube 2 enables you to:

• Read all data from original NXP smart cards

• Decrypt the data

• Create a complete copy of the immobilizer data

Smart NXP Card Reset

The device allows data stored on secure NXP Smart Cards to be erased, enabling the cards to be reprogrammed for use with another vehicle.

Transponder Identification

Automatic identification of numerous immobilizer systems, including 22K and other popular transponders used in the automotive industry.

All Keys Lost

Supports basic key-learning procedures for selected models, including:

• Honda

• Yamaha

Key-learning procedures are supported using barcodes on compatible models.

Diagnostic Functions

Remote Control Frequency Measurement

The built-in professional measurement module enables analysis of signals operating in the following frequency ranges:

• Below 1 GHz

• 2.4 GHz

This function enables quick diagnosis of remote controls and keyless systems.

Remote Control Current Consumption Measurement

The device measures the leakage current of vehicle remote controls, helping quickly identify faulty electronic circuits and excessive power consumption.

Immobilizer and PKE Antenna Type Detection

KYDZ Cube 2 can:

• Identify the type of installed immobilizer system

• Detect signals from Passive Keyless Entry (PKE) system antennas

• Display the strength of the detected signal

Built-In Interfaces

The device is equipped with vehicle communication interfaces, including:

• CAN

• LIN

• K-Line

It also supports basic diagnostic operations through the OBD interface.

Power Supply

KYDZ Cube 2 features a built-in rechargeable battery, allowing the device to operate without being continuously connected to a power outlet.

Upgrade Capability

KYDZ Cube 2 features a dedicated programmer port that supports future functionality upgrades and enables processor data reading without requiring additional devices.
